Switch Cudy 8-Port Gigabit

(Prijs excl. btw) 23,10
27,95 27,95

Dit product is alleen verkrijgbaar in de winkel

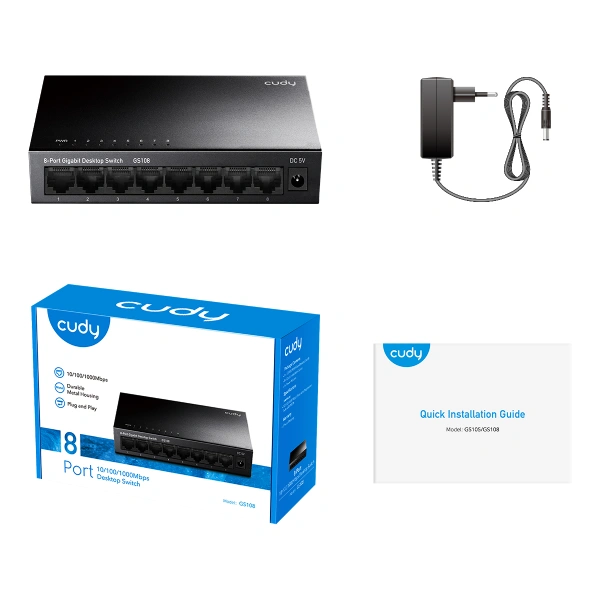

8-Port Gigabit Desktop Switch, Model: GS108

● Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards
● 8 10/100/1000Mbps Auto-Negotiation, Auto-MDI/MDIX ports provide smart switching between 10Mbps, 100Mbps and 1000Mbps hardware
● Non-blocking switching architecture enables full wire-speed packets forwarding and filtering
● Store-and-Forward switching method
● Supports 16K MAC address auto-learning & auto-aging

Model GS108
Standard configurati 8 10/100/1000M RJ-45 adaptive ports
Switching Capacity 16Gbps
Throughput 11.9Mpps
Packet Buffer 2.5M
MAC Address 1K
Jumbo Frame 2K
Transfer Mode Store and forward
MTBF 100000 hour
Network protocol

IEEE802.3 (10Base-T)

IEEE802.3u (100Base-TX)

IEEE802.3ab (1000Base-TX)

IEEE802.3x (Flow control)
Network Medium

10Base-T : Cat3,4,5 or above UTP(≤100m)

100Base-TX : Cat5  or above UTP(≤100m)

1000Base-TX : Cat5 or aboveUTP(≤100m)
Working Environment

Working Temperature:-10~50°C

Storage Temperature:-40~70°C

Working Humidity :10%~90%,non-condensing

Storage Temperature:5%~90%,non-condensing

Working Height:Maximum10,000 feet

Storage heigh:Maximum 10,000 feet
Structure Size

Product Size:138*78*25mm

Product Net-Weight:0.3kg

Product Gross-Weight:0.5kg

Power Voltage

Power Input Voltage :AC 100-240 V

Switch Input Voltage::DC 5V
